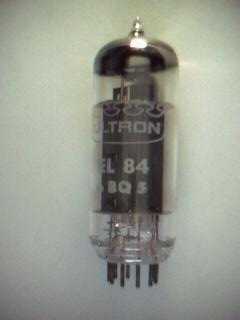

Datenblatt EL84
Sockelschaltung | EL84 |
No 20, bottom view | Artikelnummer: EL84 |
Heizung | indirekt | parallel | 6,3V | 0,76A |
---|---|---|---|---|
Verwendung | Endpentode | Gegentaktendstufe AB-Betrieb | Gegentaktendstufe B-Betrieb | Grenzwerte |
Anodenspannung | 250V | 250V (300V) | 250V (300V) | 300V |
Anodenstrom | 48mA | 2x 31mA (2x 36mA) | 2x 10mA (2x 7,5mA) | |
Gitterspannung | -7,3V | -11,6V (-14,7V) | -100V | |
Schirmgitterspannung | 250V | 250V (300V) | 250V (300V) | 300V |
Schirmgitterstrom | 5,5mA | 2x 3,5mA (2x 4mA) | 2x 1,1mA (2x0,8mA) | |
Katodenwiderstand | 135 Ohm | 130 Ohm (130 Ohm) | ||
opt. Aussenwiderstand | 5,2 kOhm | 8 kOhm Anode/Anode | 8 kOhm Anode/Anode | |
Sprechleistung | 5,7W | 11W (17W) | 11W (17W) | |
max. Anodenverlustleistung | 12W | |||
Steilheit | 11,3mA/V | |||
Innenwiderstand | 40 kOhm | |||
max. Katodenstrom | 65mA | max. Gitterwiderstand | 1 MOhm | |
max. Schirmgitterbelastung | 2W | Gitter1/Anode-Kapazitaet | 0,5pF | |
VK/Netto/Stk. | 12,94 EUR | Stand | 04.05.2013 |
